Downhole servicing tools
Your present position:Home > Products > GX Type Casing Scraper

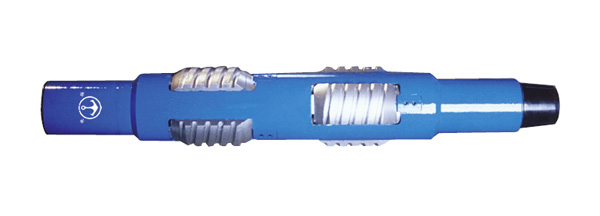

GX Type Casing Scraper

    This tool is ideal for the removal of dirties which may be left over the inside wall of casing , such as solid cement , hard wax , various salt crystals or deposits , perforation burrs , iron oxide residues resulted from rusting , so as to make all downhole tools pass through unblocked . Especially when a small circular clearance is available between the down-hole tools and casing inside diameter , the complete scrapping becomes more necessary before further working .

Technical parameters and specifications

Type Scraped
Mandrel O.D.
(mm)
Scraped
Max. of
blade stretch out
(mm)
Scraped
Min.O.D. of
blade stretch out
(mm)
Thread connection I.D.
(mm)
Scraped
range(mm)
GX114 90 107 94 2 3/8REG(NC26) 15 96-104
GX127 100 120 104 2 3/8REG(NC26) 18 106-116
GX140 110 133 115 NC31 25 117-128
GX146 110 139 120 NC31 25 122-134
GX168 130 162 137 3 1/2REG 25 140-156
GX178 136 170 146 3 1/2REG 30 148-166
GX194 136 186 162 3 1/2REG 30 165-180
GX219 142 212 185 4 1/2REG 30 191-206
GX245 200 238 210 4 1/2REG 56 216-231
GX273 228 268 240 6 5/8REG 56 248-259
